VISIBLE LED

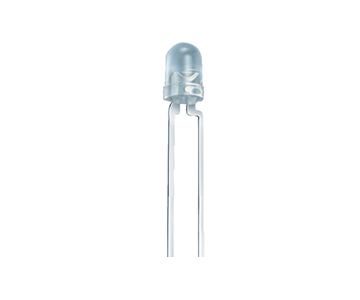

3mm_round_type/264

264

We have 3mm, 5mm, circular, concave, oval and square LED packages for all kinds of applications, including consumer products, home appliances, traffic signals, outdoor signages and industrial applications.

Features

• Choice of various viewing angles
• Available on tape and reel
• Reliable and robust
• Pb free
• The product itself will remain within RoHS compliant version

Other Applications

• TV set
• Monitor
• Telephone
• Computer

Specification

Product	DataSheet	IV		VF			Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
Product	DataSheet	IV(mcd) min.	IV(mcd) typ.	VF(V) min.	VF(V) typ.	VF(V) max.	Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
264-7SDRC/S530-A3		40	100	1.7	2	2.4	3	Deep Red	639	20	40	Water Clear
264-7SYGD/S530-E2		25	50		2	2.4	3	Brilliant Yellow Green	573	20	60	Color Diffused
264-7SUGC/S400-A4		630	1250	2.7	3.3	3.7	3	Brilliant Green	530	20	30	Water Clear
264-7SURD/S530-A3		63	125	1.7	2	2.4	3	Brilliant Red	624	20	60	Red Diffused
264-7UYD/S530-A3		63	125	1.7	2	2.4	3	Brilliant Yellow	589	20	60	Yellow Diffused
264-7SUGC/S400-A5		1000	2000		3.4	4	3	Brilliant Green	530	20	30	Water Clear
264-7SURC/S400-A8		400	800	1.7	2	2.4	3	Brilliant Red	624	20	40	Water Clear
264-7SYGC/S530-E3		100	320	1.7	2	2.4	3	Brilliant Yellow Green	573	20	35	Water Clear
264-7UYC/S400-A9		630	1250	1.7	2	2.4	3	Brilliant Yellow	589	20	40	Water Clear
