VISIBLE LED

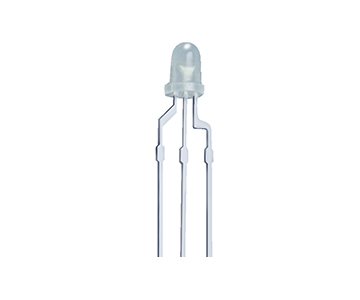

3mm_round_type/209

209

We have 3mm, 5mm, circular, concave, oval and square LED packages for all kinds of applications, including consumer products, home appliances, traffic signals, outdoor signages and industrial applications.

Features

• Choice of various viewing angles
• Available on tape and reel
• Reliable and robust
• Pb free
• The product itself will remain within RoHS compliant version

Other Applications

• TV set
• Monitor
• Telephone
• Computer

Specification

Product	DataSheet	IV		VF			Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
Product	DataSheet	IV(mcd) min.	IV(mcd) typ.	VF(V) min.	VF(V) typ.	VF(V) max.	Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
209-3SURSYGW/S530-A3		R:25 G:10	R:50 G:20	1.7	2	2.4	3	Brilliant Red Brilliant Yellow Green	R:624 G:573	20	80	White Diffused
209SDRSYGW/S530-A3		R:25 G:16	R:50 G:32	1.7	2	2.4	3	Deep Red Brilliant Yellow Green	R:639 G:573	20	80	White Diffused
209SURSYGC/S530-A3		R:63 G:40	R:125 G:80	1.7	2	2.4	3	Brilliant Red Brilliant Yellow Green	R:624 G:573	20	60	Water Clear
209UYOSUGC/S530-A3		R:100 G:160	R:200 G:320	R:1.7 G:2.7	R:2.0 G:3.3	R:2.4 G:3.7	3	Brilliant Orange Brilliant Green	R:605 G:525	20	50	Water Clear
