SCD ELECTRONICS CO., LTD

VISIBLE LED

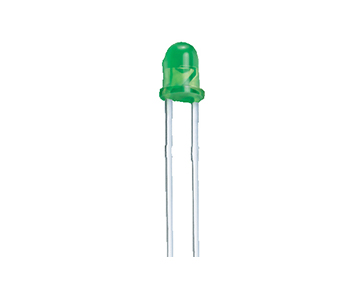

3mm_round_type/1254

1254

We have 3mm, 5mm, circular, concave, oval and square LED packages for all kinds of applications, including consumer products, home appliances, traffic signals, outdoor signages and industrial applications.

Features

• Choice of various viewing angles
• Available on tape and reel
• Reliable and robust
• Pb free
• The product itself will remain within RoHS compliant version

Other Applications

• TV set
• Monitor
• Telephone
• Computer

Specification

Product	DataSheet	IV		VF			Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
Product	DataSheet	IV(mcd) min.	IV(mcd) typ.	VF(V) min.	VF(V) typ.	VF(V) max.	Dimension (mm)	Color	Wavelength(nm) / CIE	I_F [mA]	Viewing Angle	Diffused
1254-10SDRD/S530-A3		100	160	1.7	2	2.4	3	Deep Red	639	20	30	Color Diffused
1254-10SURD/S530-A3		250	400	1.7	2	2.4	3	Brilliant Red	624	20	30	Color Diffused
1254-10SYGD/S530-E2		40	63	1.7	2	2.4	3	Brilliant Yellow Green	573	20	40	Color Diffused
1254-10UYD/S530-A3		100	200	1.7	2	2.4	3	Brilliant Yellow	589	20	30	Color Diffused
1254-10SDRT/S530-A3		160	320		2	2.4	3	Deep Red	639	20	30	Red Trans
1254-10SURT/S530-A3		160	320		2	2.4	3	Hyper Red	624	20	30	Red Trans
1254-10SYGT/S530-E2		160	320	1.7	2	2.4	3	Brilliant Yellow Green	573	20	30	Green Trans
1254-10UYOT/S530-A3		250	500	1.7	2	2.4	3	Brilliant Orange	605	20	30	Orange Color
