VISIBLE LED

Reflective Type

• Fast response time
• Cut-off visible wavwlength
• High sensitivy
• Pb free and RoHS compliant

• Printers
• Copier
• Switch scanner
• Digital cameras
• Non-contact switching

Specification

Product	DataSheet	VF		Dimension (mm)	VCE(SAT)_Max (V)	IC(ON)_Min (mA)	ICEO _Max. (nA)
Product	DataSheet	VF(V) typ.	VF(V) max.	Dimension (mm)	VCE(SAT)_Max (V)	IC(ON)_Min (mA)	ICEO _Max. (nA)

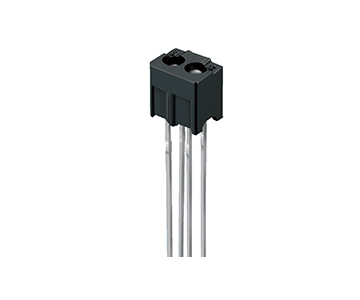

ITR20001/T		1.2	1.5	6.4x4.9x6.5	0.4	0.2	100

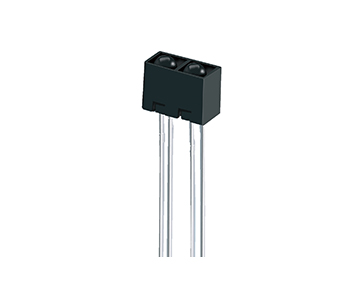

ITR9909		1.2	1.5	8.7x4.5x5.9	0.4	0.2	100

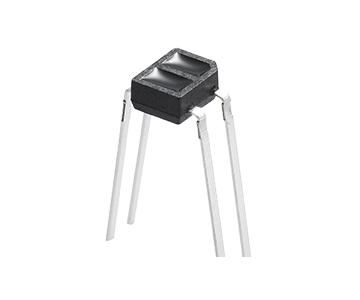

ITR8307/F43		1.2	1.6	3.4x2.7x1.5		0.1	100

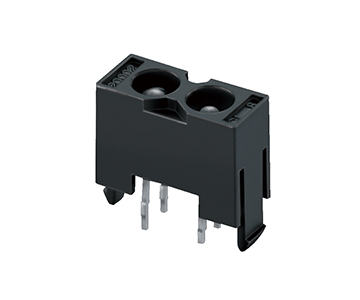

ITR20002		1.2	1.5	12.8x5.4x9.3	0.4	0.04	100

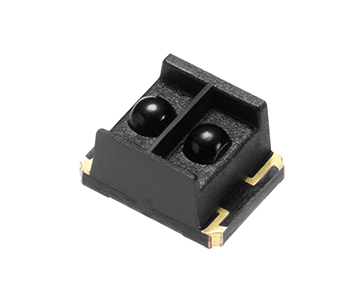

ITR1502SR40A/TR8		1.2	1.4	4.0x3.0x2.0		0.06	100
ITR8307/L24/TR8		1.2	1.6	4.6x3.4x1.5	1	0.5	100
ITR8307/L24/F43		1.2	1.6	3.4x2.7x1.5		0.5	100

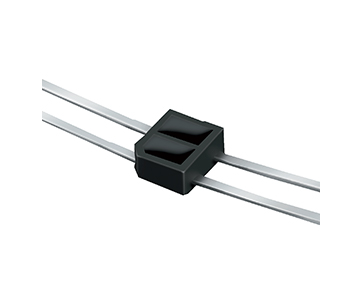

ITR8307/TR8		1.2	1.6	4.6x3.4x1.5	0.4	0.1	100
