VISIBLE LED

Transmissive Type

• Fast response time
• Cut-off visible wavwlength
• High sensitivy
• Pb free and RoHS compliant

• Printers
• Copier
• Switch scanner
• Digital cameras
• Non-contact switching

Specification

Product	DataSheet	VF		Dimension (mm)	VCE(SAT)_Max (V)	IC(ON)_Min (mA)	Gap Distance (mm)	ICEO _Max. (nA)
Product	DataSheet	VF(V) typ.	VF(V) max.	Dimension (mm)	VCE(SAT)_Max (V)	IC(ON)_Min (mA)	Gap Distance (mm)	ICEO _Max. (nA)

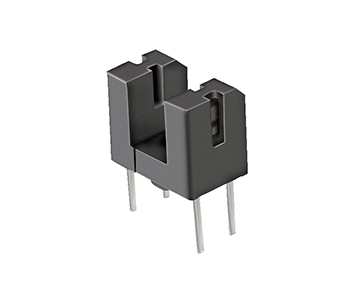

ITR20403		1.23	1.6	6.4x4.2x5.4	0.4	0.2	3	100

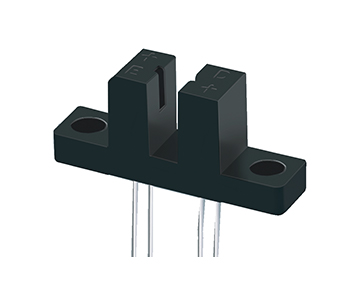

ITR8102		1.25	1.6	24.4x6.0x10.4	0.4	0.9	3.1	100

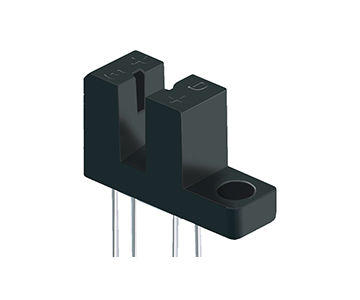

ITR8104		1.2	1.6	18.1x6.0x10.5	0.4	0.5	3.1	100

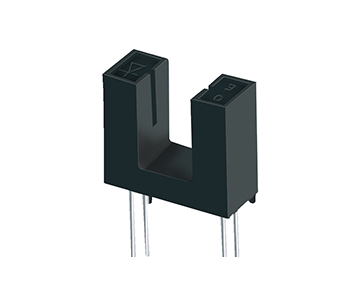

ITR8402-F-A		1.2	1.5	14.0x6.0x11.6	0.4	0.5	6	100
ITR9606-F		1.2	1.5	14.0x6.0x10.0	0.4	0.5	5	100

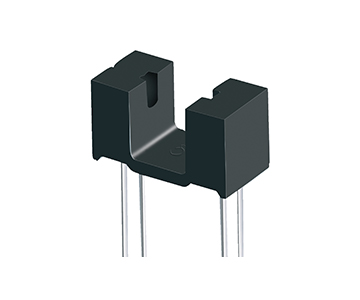

ITR9707		1.2	1.5	12.8x6.4x6.9	0.4	0.5	5.2	100
