VISIBLE LED

Photo Transistor/Side Look

• Fast response
• High photo sensitivity
• Side-look type

• Consumer
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)
Product	DataSheet	Dimension (mm)	λp (nm)	Rise / Fall Time (ns)	Rise / Fall Time (μS)	VCE(SAT)_Max (V)	IC(ON)_Typ (mA)

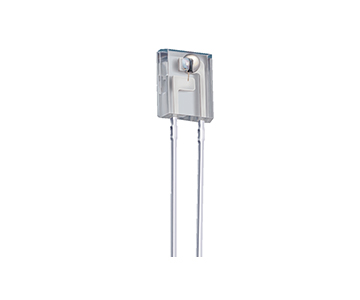

PT908-7B-F		4.5x2.25x5.7	940	15/15	-	0.4	-
PT908-7C-F		4.5x2.25x5.7	940	15/15	-	0.4	-
PT928-6B-F		4.6x2.5x4.5	940	15/15	-	0.4	-
PT928-6C-F		4.6x2.5x4.5	940	15/15	-	0.4	-

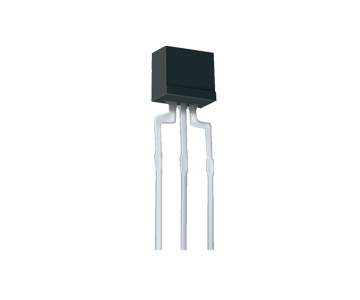

PT2559B/L2-F		4.8x2.8x4.5	940	15/15	Tr(us)=15 Tf(us)=15	0.4	-
PT2559B/L2/H2-F		4.8x2.8x4.5	940	15/15	Tr(us)=15 Tf(us)=15	0.4	-
