VISIBLE LED

Photo Diode/Lamp

Lamp

• High speed response
• Low dark current
• Small junction capacitance
• DIP type

• 3D glass application
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)
Product	DataSheet	Dimension (mm)	λp (nm)	IL_Typ (μA)	BVR_Min.(V)	ID_Max (nA)

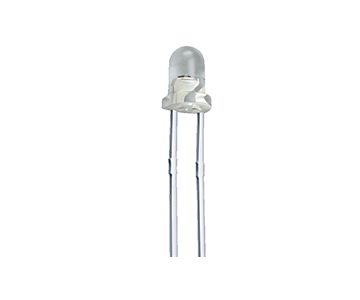

PD204-6C		3mm	940	3.5	32	10
PD204-6C/L3		3mm	940	10	32	10

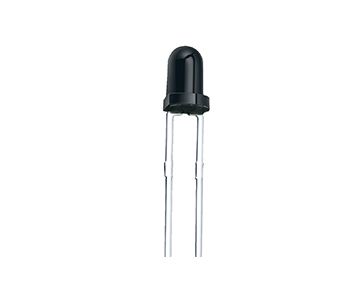

PD204-6B		3mm	940	3	32	10
PD204-6B/L3		3mm	940	6	32	10

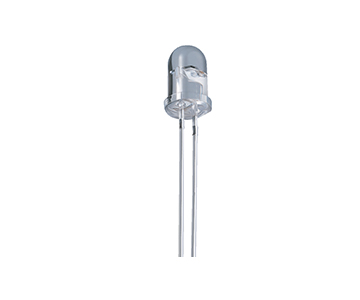

PD333-3C/L793		5mm	940	33	30	10
PD333-3C/H0/L2		5mm	940	40	32	30
PD333-3C/H0/L811		5mm	940	60	35	10
PD333-3B/L1		5mm	940	-	32	30
PD333-3B/L2		5mm	940	35	32	30

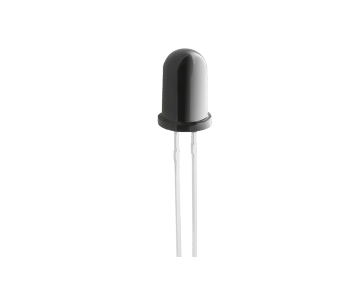

PD333-3B/L3		5mm	940	-	32	10
PD333-3B/L4		5mm	940	12	32	10
PD333-3B/H0/L2		5mm	940	35	32	30
