Emitter/SMD

SMD

Features

• High radiant intensity
• Low forward voltage
• Surface mount Device

Other Applications

• Consumer
• IR Touch-Panel
• Industrial equipment
• Other Infrared application systems

Specification

Product	DataSheet	VF		Dimension (mm)	λp (nm)	View Angle	Ie_Min (mW/sr)	Ie_Typ (mW/sr)
Product	DataSheet	VF(V) typ.	VF(V) max.	Dimension (mm)	λp (nm)	View Angle	Ie_Min (mW/sr)	Ie_Typ (mW/sr)

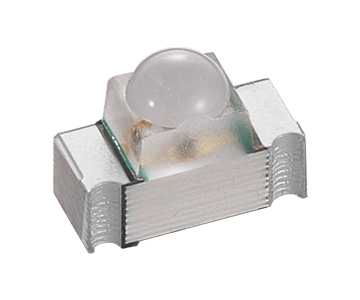

IR26-61C/L746/R/TR8		1.25	1.5	3.0x1.2x2.65	940	20	4	8

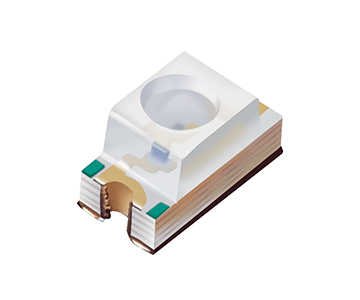

HIR11-21C/L11/TR8		1.45	1.65	3.0x1.5x1.5	850	75	1	2
IR11-21C/TR8		1.2	1.5	3.0x1.5x1.5	940	100	0.5	1.6
IR12-21C/TR8		1.2	1.5	3.0x1.0x2.0	940	160	0.5	0.8
SIR12-21C/TR8		1.3	1.6	3.0x1.0x2.0	875	150	0.5	0.9

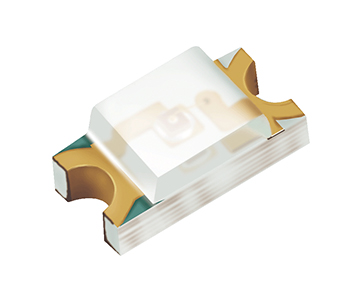

IR15-21C/TR8		1.2	1.5	3.2x1.5x1.1	940	160	0.2	0.8

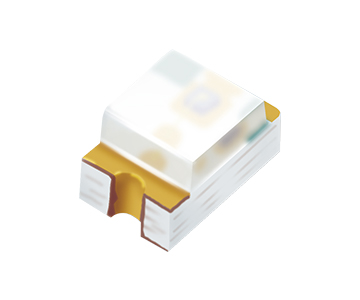

IR17-21C/TR8		1.2	1.5	2.0x1.25x1	940	120	0.2	0.8
HIR19-21C/L11/TR8		1.45	1.65	1.6x0.8x0.8	850	145	0.2	0.8

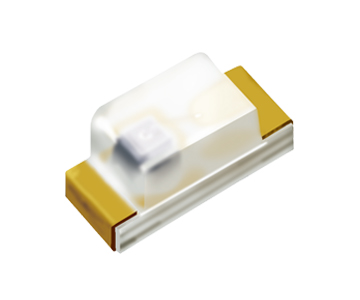

IR19-21C/TR8		1.2	1.5	1.6x0.8x0.8	940	150	0.2	0.7
SIR19-21C/TR8		1.3	1.6	1.6x0.8x0.8	875	145	0.2	0.5
IR25-21C/TR8		1.2	1.5	3.2x1.6x1.1	940	160	0.5	1.5

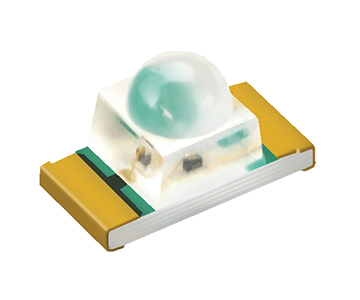

IR26-21C/L110/TR8		1.2	1.5	3.2x1.6x1.9	940	20	1	3
IR26-51C/L110/TR8		1.2	1.5	3.2x1.6x2.6	940	20	1	3.5

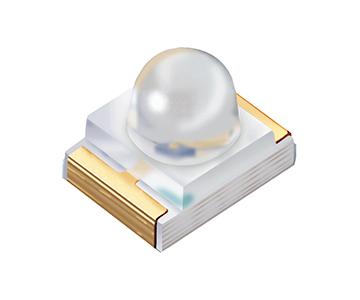

IR42-21C/TR8		1.2	1.5	3.2x2.4x2.5	940	30	1	3

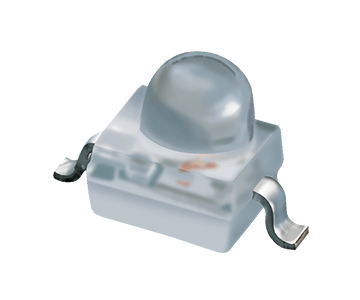

IR91-21C/TR7		1.2	1.5	2.5x2x2.7	940	25	3	5

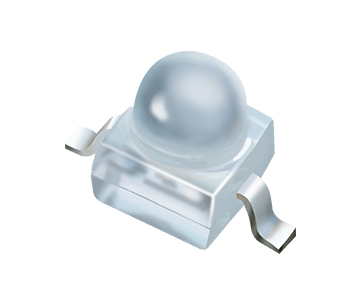

IR95-21C/TR7		1.2	1.5	2.1x2.0x2.7	940	25	3	5
IR19-315C/TR8		1.2	1.5	1.7x0.8x0.6	940	140	0.2	0.6

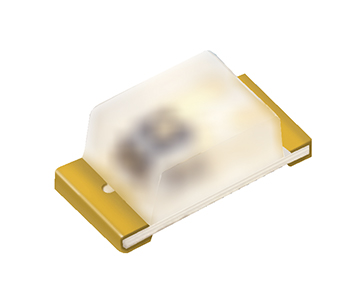

SIR19-315/TR8		1.35	1.7	1.7x0.8x0.6	870	140	1	1.3
IR91-21C		1.2	1.5	2.5x2.2x2.7	940	25	3	5
IR91-21C/TR10		1.2	1.5	2.5x2x2.7	940	25	3	5
HIR83-01B/TR8		1.4	1.7	1.6x0.8x1.52	850	100(X) 40(Y)	2	5
SIR67-21C/TR8		1.3	1.6	3.5x2.7x1.8	875	120	0.5	1.1
HIR67-21C/L11/TR8		1.45	1.65	3.5x2.7x1.9	850	120	1	2

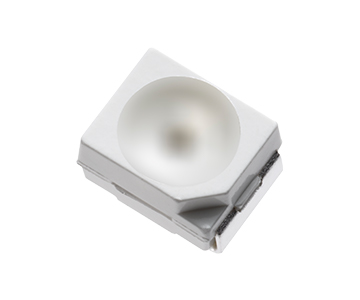

IR67-21C/TR8		1.2	1.5	3.5x2.7x1.9	940	120	1	1.5
IRR60-48C/TR8		2.1/1.4	2.5/1.6	6.0x4.8x1.1	660/905	140/130	1/0.5	2.3/1

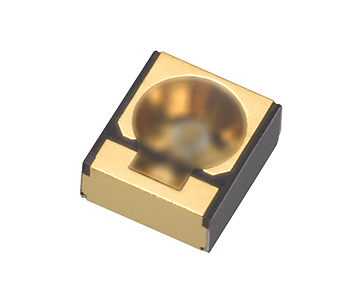

IR91-01C/L491/2R		1.4	1.7	2.2x1.95x0.90	940	40	25@70mA	50@70mA
IRR60-48C/L661/TR8		2.1(R)1.4(IR)	2.5(R)1.6(IR)	6.0x4.8x1.1	660(R)910(IR)	140(R)130(IR)	1.0(R)1.0(IR)	2.3(R)1.5(IR)
IRRG25-16C/L491/TR8		3.0(G)1.9(R)1.3(IR)	3.5(G)2.5(R)1.8(IR)	2.5x1.6x0.55	525(G)660(R)940(IR)	120	1200mcd(G)150mcd(R)1.5(IR)

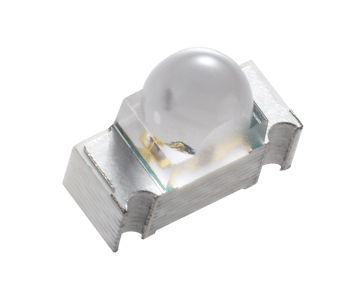

IR29-01C/L510/R/TR8		1.3	1.6	3.0x1.2x2.76	940	15	20	25
IR26-21C/L447/CT		1.3	1.5	3.2x1.6x1.9	940	25	11	18
HIR26-21C/L289/TR8		1.4	1.7	3.2x1.6x1.9	850	25	10	17
HIR26-21C/L423/TR8		1.45	1.7	3.2x1.6x1.9	850	20	14	16

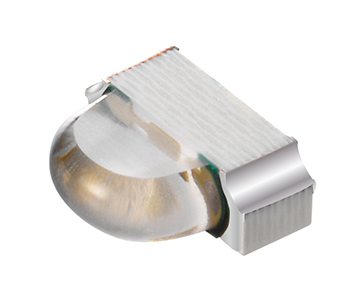

IR26-91C/L510/2D		1.3	1.6	3.0x1.0x2.43	940	130(X)20(Y)		8
IR26-61C/L510/R/2G		1.2	1.5	3.0x1.2x2.65	940	20	10	24
IR26-71C/L447/S63/TR8		1.3	1.6	3.0x1.2x2.4	940	50	5	8.5
IR16-213C/L510/TR8		1.5	1.9	1.0x0.5x0.45	940	120	0.5	2.35
IR11-21C/L491/TR8		1.3	1.7	3.0x1.5x1.5	940	80	1	2.8

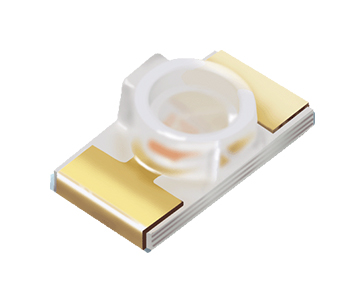

HIR25-21C/L289/2T		1.4	1.7	3.2x1.6x1.0	850	60	4	5
HIR25-21C/L423/TR8		1.45	1.65	3.2x1.6x1.1	850	70	3	5.5
IRR15-22C/L491/TR8		1.9(R)1.3(IR)	2.5(R)1.7(IR)	3.2x2.7x1.0	660(R)940(IR)	120	1.0(R)1.0(IR)	2.3(R)2.1(IR)
BR15-22C/L586/R/TR8		1.8(R)1.3(IR)	2.6(R)1.8(IR)	3.2x2.7x1.0	660(R)905(IR)	140	0.5(R)0.2(IR)	1.5(R)0.5(IR)
HIR16-213C/L423/TR8		1.45	1.65	1.0x0.5x0.45	850	145	0.5	1.5

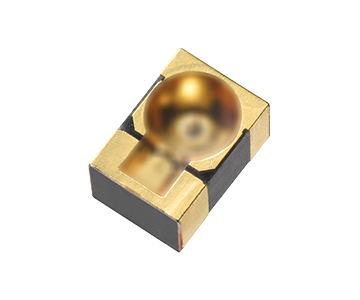

HIR89-01C-1R		1.4	1.7	3.1x2.25x1.6	850	30	40@70mA, tp=20ms	-
